Belt Bucket Elevator

Model:TD160-TD400

Type:belt type

Capacity :5-66(m³/h)

Elevating Height (m):≤30

Our Advantage

1

   Widely usage, it can elevate powdery material, particles, small lump material.

2

   Flexible to select mixing or centrifugal discharge method according to material properties.

3

   Good sealing, no dust escape. Clean and environmental protection.

4

   Using rubber belt with small dead load, flexible, stable operation, thus elevating speed and process efficiency is higher.

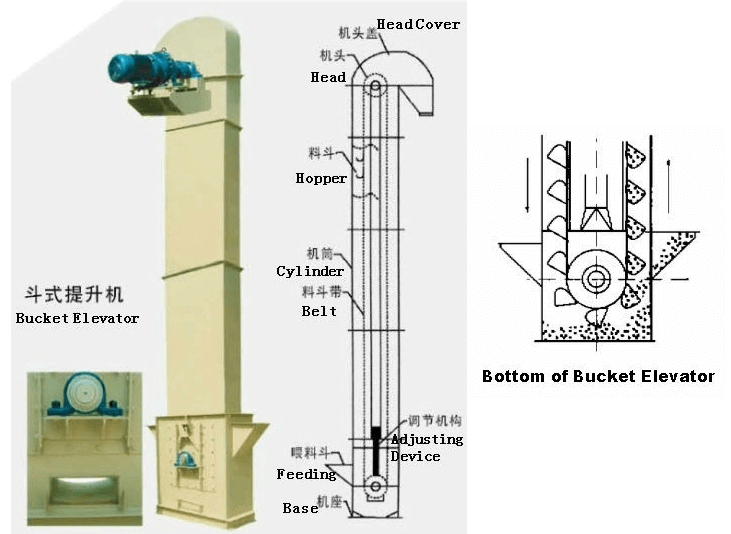

    Belt type bucket elevator use belt as dragging device, it mainly use for conveying material with bulk densityρ<1.5t/m³in vertical direction, which can be powdery material, particles, small lump, less abrasive material. Use normal belt, the temperature of conveying material should not exceed 60℃, Use wire belt, conveying material temperature can reach 80℃,use heat resistant belt, material temperature not exceed 150℃, elevating height is 4~30m.Normal model of TD type bucket elevator is TD160、TD250、TD315、TD400 etc. conveying capacity is 3.1~66m³/h. which is widely use in chemical engineering, metallurgy, construction material, food, mining industries etc.

    Application:

    Bucket elevator is designed for vertical transportation powder, granular materials and small block and grinding of small materials, such as: coal, cement, stones, sand, clay, ore and so on. or other industries of dry mortar for construction, chemistry and foodstuff.
