Pneumatic Conveying System Project
1. Project Overview
Item Name: Pneumatic Conveying System
Quantity: 1 Unit
Client: Spain Company
Date: April, 2025
2. Project Introduction
Spanish customer wants to purchase a set of pneumatic conveying system for bauxite grinding conveying. After further implementation of the detailed requirements of the process and site layout, a complete set of pneumatic conveying system including Roots fan, elbow, pipe, screw conveyor and electrical control cabinet is recommended to the customer. After further introducing the working principle of the equipment, our processing capabilities, and implementing the upstream and downstream equipment and import and export dimensions on site, the customer finally chose our company as the supplier. Now the cargo is already shipped out by sea in middle of June. Our qualified machine and one-stop customer service has won the positive feedback from the oversea client again.
3. Technical Parameter
S.N. | Item Name | Model/SPEC |
1 | Roots Blower | HTSR-150 W=45KW |

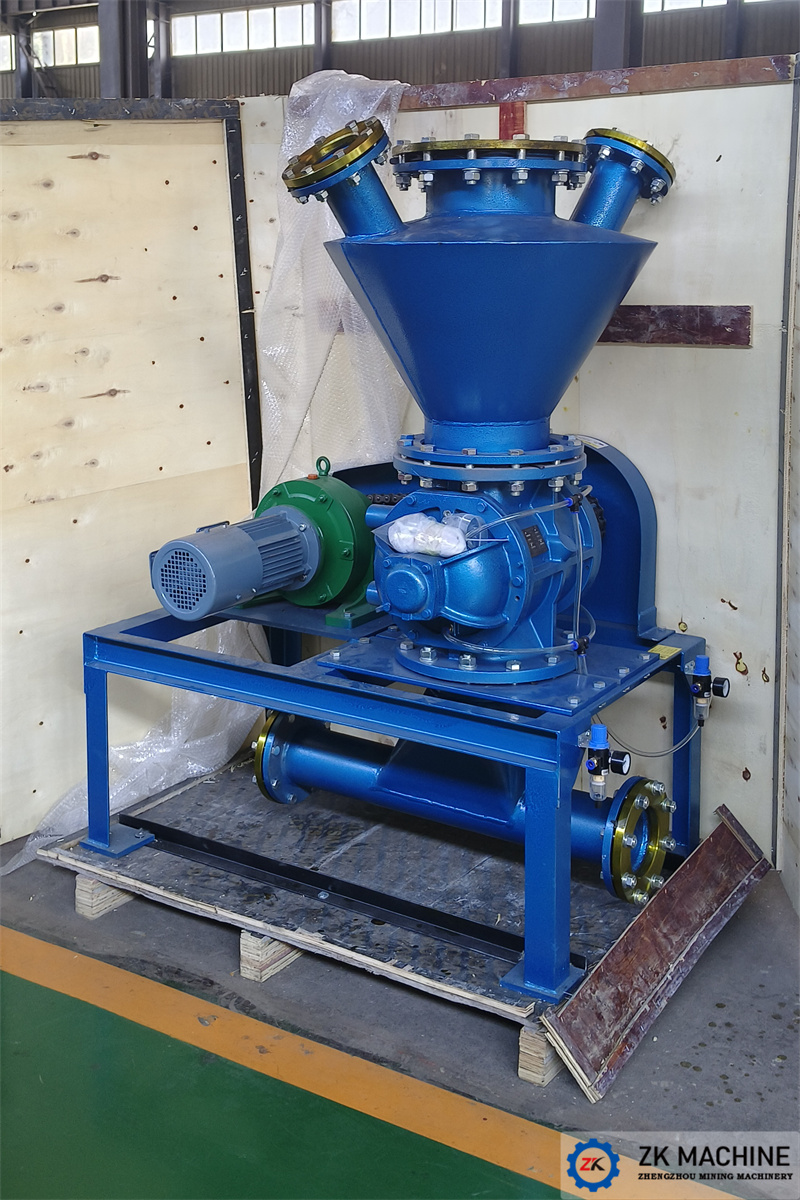

2 | Rotary Feeder | Model: ARG120 Power:1.5Kw |
3 | Reversing Valve | SV125 |
4 | Bends | DN125，R=8D,90° / 45° |
5 | Electrical Control Cabinet | GGD2200X600X800 |
6 | Pipes | DN125 |
