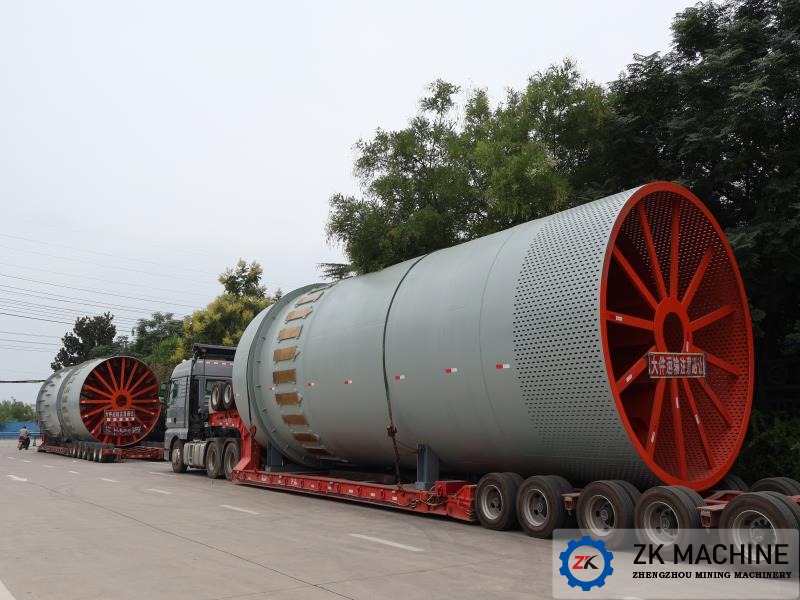

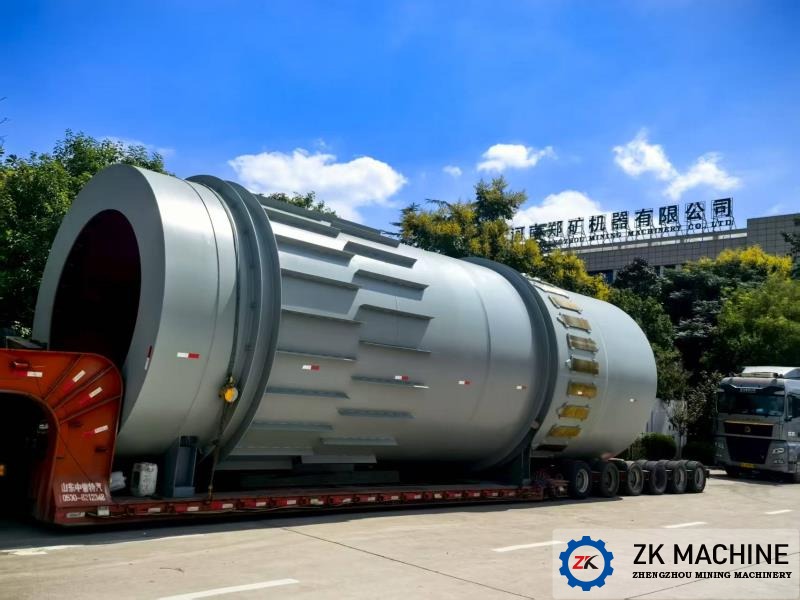

Introduction
Rotary Cooler is a equipment that can cooling material via the cylinder rotating to drive material processing fully heat exchange with cool air, which have series advantages like good cooling performance, bigger capacity, high operating ratio, energy saving with environmental protection, easy operation and maintenance and long life time. The cooler can be widely used for industry fields like Cement, Quick-Lime, Expanded Aggregate and Magnesium etc.
Features
1. The rack of thrust roller and support roller device is adopt whole welding, processing vibration aging treatment, after remove welding stress, will integrative manufacture by large vertical lathe and boring-milling machine, which will ensure manufacture accuracy and form and location tolerance, also enhance the installation accuracy and reliability of the cooler.
2. Good cooling performance, higher capacity and high operating ratio.
3. Matching with various angle lifting board inside cooler, will substantially enhance the heat exchange rate and reduce cooling time.
4. Compact structure with steady operation and easy for maintenance.
Technical Parameter
| Model (m) | Shell | Motor | Reducer model | Overall size ( L X W X H) | Weight (t) |
|---|
| Volume (m³） | Revolving speed（rpm) | Slope (%) | Model | Power (kW) | (mm) |
|---|
| Φ1x15 | 11.8 | 5 | 5 | YCT200-4B | 7.5 | ZQ400 | 15000x1876x2069 | 9.5 |
| Φ1.2x12 | 13.57 | 5 | 5 | YCT225-4A | 11 | ZQ500 | 12000x2159x2475 | 10.3 |
| Φ1.2x15 | 17 | 4-5 | 5 | YCT225-4B | 15 | ZQ500 | 15000x2294x2475 | 12.8 |
| Φ1.2x20 | 22.6 | 4-5 | 5 | YCT225-4B | 15 | ZQ500 | 20000x2294x2475 | 16.8 |
| Φ1.5x10 | 17.67 | 3-5 | 5 | YCT225-4B | 15 | ZQ650 | 10000x2655x2895 | 16.5 |
| Φ1.5x14 | 24.9 | 3-5 | 5 | YCT225-4B | 15 | ZQ650 | 14000x2655x2895 | 19.2 |
| Φ1.5x18 | 31.8 | 3-5 | 5 | YCT250-4A | 18.5 | ZQ650 | 18000x2655x2895 | 22.9 |
| Φ1.5x20 | 35.3 | 3-5 | 5 | YCT250-4A | 18.5 | ZQ650 | 20000x2655x2895 | 25.4 |
| Φ1.8x16 | 30.5 | 3-5 | 4 | YCT250-4B | 22 | ZQ750 | 16000x3060x2980 | 35.4 |
| Φ1.8x18 | 45.8 | 3-5 | 4 | YCT250-4B | 22 | ZQ750 | 18000x3060x2980 | 32.3 |
| Φ1.8x20 | 50.9 | 3-5 | 4 | YCT250-4B | 22 | ZQ750 | 20000x3060x2980 | 39.2 |
| Φ2.0x16 | 50.3 | 3-5 | 3.5 | YCT250-4B | 22 | ZQ750 | 16000x3340x3420 | 38.6 |
| Φ2.0x20 | 62.8 | 3-5 | 3.5 | YCT280-4A | 30 | ZQ750 | 20000x3340x3420 | 42.8 |
| Φ2.2x14 | 53.2 | 3-5 | 3.5 | YCT280-4A | 30 | ZQ750 | 14000x3620x3570 | 45.3 |
| Φ2.2x18 | 68.4 | 3-5 | 3.5 | YCT280-4A | 30 | ZQ750 | 18000x3620x3570 | 49.4 |
| Φ2.2x20 | 76 | 3-5 | 3.5 | YCT280-4A | 30 | ZQ750 | 20000x3620x3570 | 51.8 |
| Φ2.4x16 | 72.3 | 3-4 | 3.5 | YCT280-4A | 30 | ZQ850 | 16000x3860x3760 | 58.8 |
| Φ2.4x20 | 90.4 | 3-4 | 3.5 | YCT280-4A | 30 | ZQ850 | 20000x3860x3760 | 63.9 |
| Φ2.8x28 | 172 | 2.5 | 3.5 | Y280M-6 | 55 | ZQ1000 | 28000x4350x4200 | 130 |
| Φ3x30 | 212 | 1-2 | 3.5 | Y315S-6 | 75 | ZL115 | 30000x4860x4630 | 169 |
