Spiral Classifier Project in Shaoguan, Guangdong
1. Project Introduction
Project Location: Shaoguan ,Guangdong Province
Contractor: *** Machinery & Automation Technology Co., Ltd.

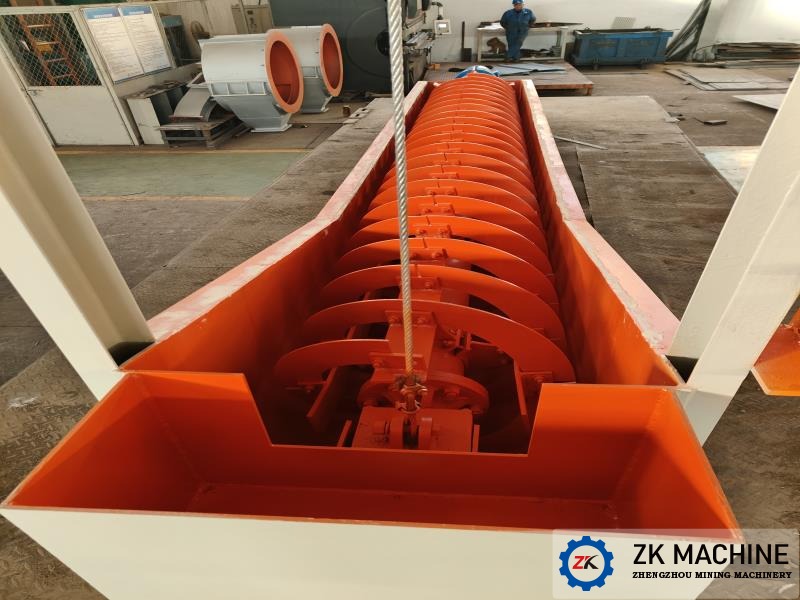

Equipment Name: Spiral Classifier
Equipment Model: FG-500
Supply Scope: Complete Set
2. Project Introduction
The project of a copper-sulfur ore processing plant in Guangdong, which was undertaken by *** Machinery & Automation Technology Co., Ltd., was selected by the client after multiple inspections. The client chose ZK's FG-500 spiral classifier and combined it with the client's existing ball mill to form a closed-loop system for classifying the ground copper-sulfur ore.
S/N | Item | Unit | Value | Remarks | |
1 | Model | FG-500 | |||
2 | Type | high weir single spiral | |||
3 | Dia. Of Spiral | mm | Φ500 | ||
4 | Pitch of Spiral | mm | 250 | ||
5 | Size of Groove | mm | 4500×560×380 | ||
6 | Slope of Groove | ° | 14～18 | ||
7 | Rev. Speed of Spiral | r/min | 0.86～8.6 | ||
8 | Processed Material | Grinded Copper-Sulfur Ore | |||
9 | Specific Gravity of Material | g/cm³ | 2.5～3 | ||
10 | Overflow Qty | t/d | 21～75 | ||
11 | Circulating Load | t/d | 145～261 | ||
12 | Max. Lifting Height of Spiral | mm | 300 | ||
13 | Variable Frequency Motor | Model | YVF-112M-6 | frequency | |
Power | kW | 2.2 | |||
Voltage | V | 380 | |||
Frequency | Hz | 50 | |||
Rev. Speed | r/min | 100～1000 | |||
14 | Reducer | Model | WPS155-50 | ||
Ratio | i=50 | ||||
15 | Equipment Weight (exclude Start-up Cabinet) | t | 1.85 | ||
