    Project Name

    Qingdao Shouyi 200,000 m³/a Ceramsite Production Line Project

    Capacity

    200,000 m³/a

    Location

    Qingdao

    Project Overview

    Project introduction: This project is a project of Qingdao Shouyi Environmental Technology Co., Ltd. with an annual output of 200,000 cubic meters of finished ceramsite. The main equipment is the design, manufacture, installation and commissioning of ceramsite rotary kiln and cooler equipment. The main raw materials of the project are mainly waste soil, sludge and industrial waste residue, which are aged, and then granulated and calcined to form ceramsite.


    Project Overview

    Signing date: 2021-06

    Processing raw materials: waste soil, sludge, industrial waste residue

    Processing capacity: annual output of 200,000 cubic meters of finished ceramsite

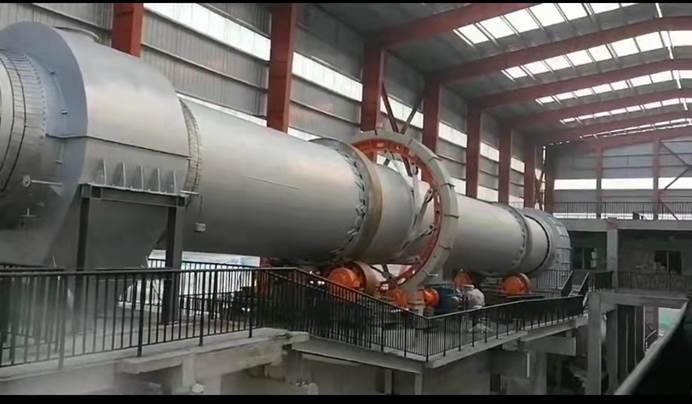

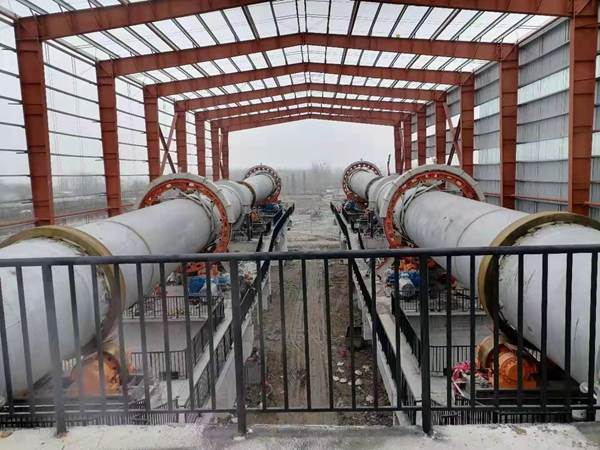

    Main equipment: ø2.5×21m indirect heating dryer, ø3.0/ø2.4×40m+ø3.0×33m plug-in kiln, ø2.5×22m cooler

    Project Solution

    The equipment used in this project is a new type of environmentally friendly and energy-saving equipment developed by Zhengzhou Mining Machinery Co., Ltd. actively researching and improving the process, and successfully integrating the metallurgical, chemical and building materials processes.

    Process flow

    Clay and auxiliary materials → breaking up and crushing → proportioning and measuring → mixing and stirring → aging → granulation → roasting → cooling → finished product classification and screening → stacking → transportation (packaging)

    Introduction of main equipment in the project: Belt conveyor is an indispensable equipment for conveying raw materials and finished products in the project. It has the characteristics of large conveying capacity, high degree of mechanization, and simple maintenance and operation. It can be customized according to different conveying processes and working environments. Heat-resistant, cold-resistant, waterproof, anti-corrosion, explosion-proof, flame-retardant and other equipment with special requirements are widely used in ceramsite production lines.

    Main Equipment

    ø2.5×21m indirect heating dryer, ø3.0/ø2.4×40m+ø3.0×33m plug-in kiln, ø2.5×22m cooler
